Dynamic monitoring of robot parameters

After starting the bot, OriginBot provides a variety of parameters that can be dynamically detected or modified.

Hint

The operating environment and software and hardware configurations are as follows:

  • OriginBot Robot(Visual Version/Navigation Version)
  • PC:Ubuntu (≥20.04) + ROS2 (≥Foxy)

View the status of your bot

You can see the status information of the robot through the following command, and the release frequency of the robot is 10Hz.

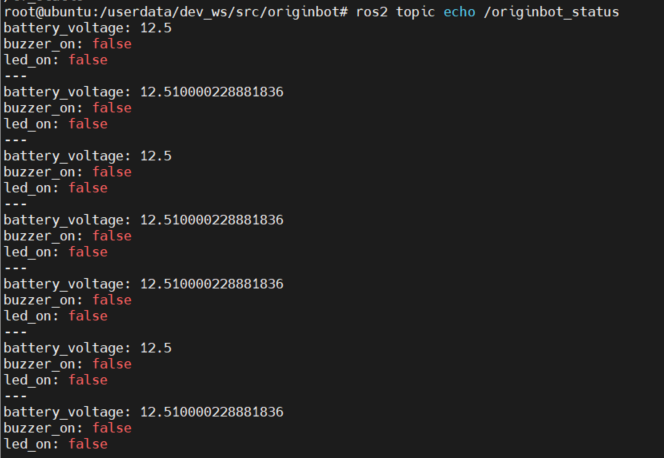

$ ros2 topic echo /originbot_status
state description typical
battery_voltage Battery level, unit: V 9.0~12.8
buzzer_on Control the status of the buzzer on the board true:On
false:Off
led_on Control the status of the LEDs on the board true:On
false:Off


Control on-board buzzer

By the following instructions, you can turn on or off the controller buzzer by the way of service call:

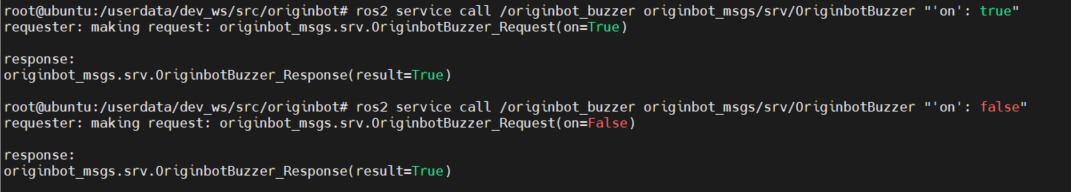

$ ros2 service call /originbot_buzzer originbot_msgs/srv/OriginbotBuzzer "'on': true"     ## Turn on the buzzer
$ ros2 service call /originbot_buzzer originbot_msgs/srv/OriginbotBuzzer "'on': false"    ## Turn off the buzzer


Control on-board LED lights

By the following instructions, you can turn on or off the controller LED light by the way of service call:

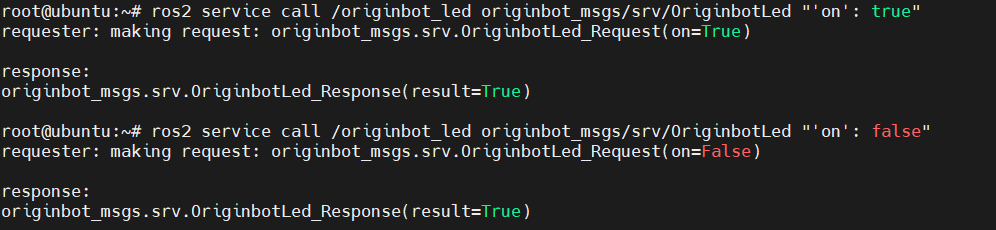

$ ros2 service call /originbot_led originbot_msgs/srv/OriginbotLed "'on': true"      ## Turn on the LED
$ ros2 service call /originbot_led originbot_msgs/srv/OriginbotLed "'on': false"     ## Turn off the LED

image-20220822150809883

View the information about the CPU and BPU

You can view the information of the core processor of OriginBot by using the following commands, such as the frequency and temperature of each core:

$ hrut_somstatus


Set the PID parameters of the motor

Through the following commands, you can set the PID parameters of the left and right motors in the OriginBot controller through service calls, which will take effect immediately after setting:

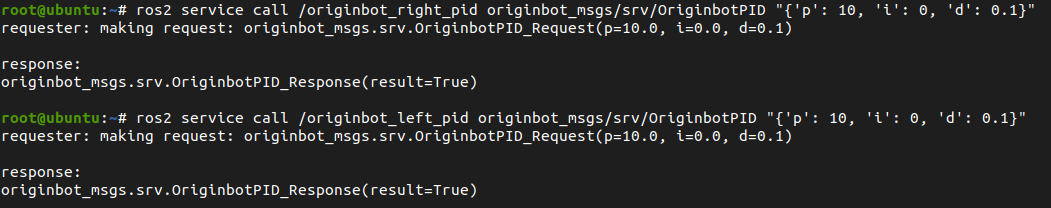

$ ros2 service call /originbot_left_pid originbot_msgs/srv/OriginbotPID "{'p': 10, 'i': 0, 'd': 0.1}"
$ ros2 service call /originbot_right_pid originbot_msgs/srv/OriginbotPID "{'p': 10, 'i': 0, 'd': 0.1}"

image-20220926123533003

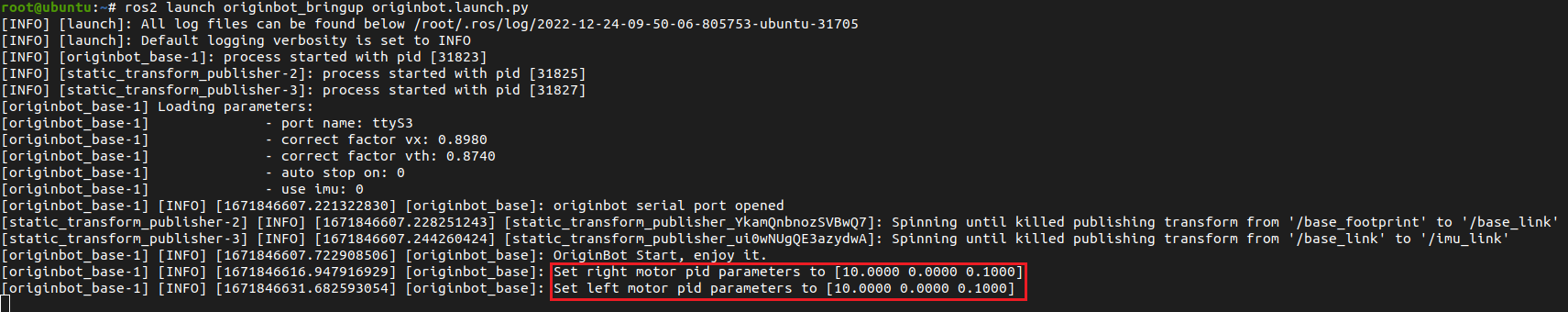

In the terminal where the robot is launched, you can also see a log prompt for successfully setting the PID parameters:

image-20220926123706712
