Set up a development environment

OriginBot supports ssh remote login for development, if you are not used to remote command line development, you can also build a visual development environment on the PC side, here we introduce how to use VSCode for remote development.

Hint

The operating environment and software and hardware configurations are as follows:

  • OriginBot Bot (Visual Version/Navigation Version)
  • PC:Ubuntu (≥20.04) + ROS2 (≥Foxy) + VSCode

Install VSCode

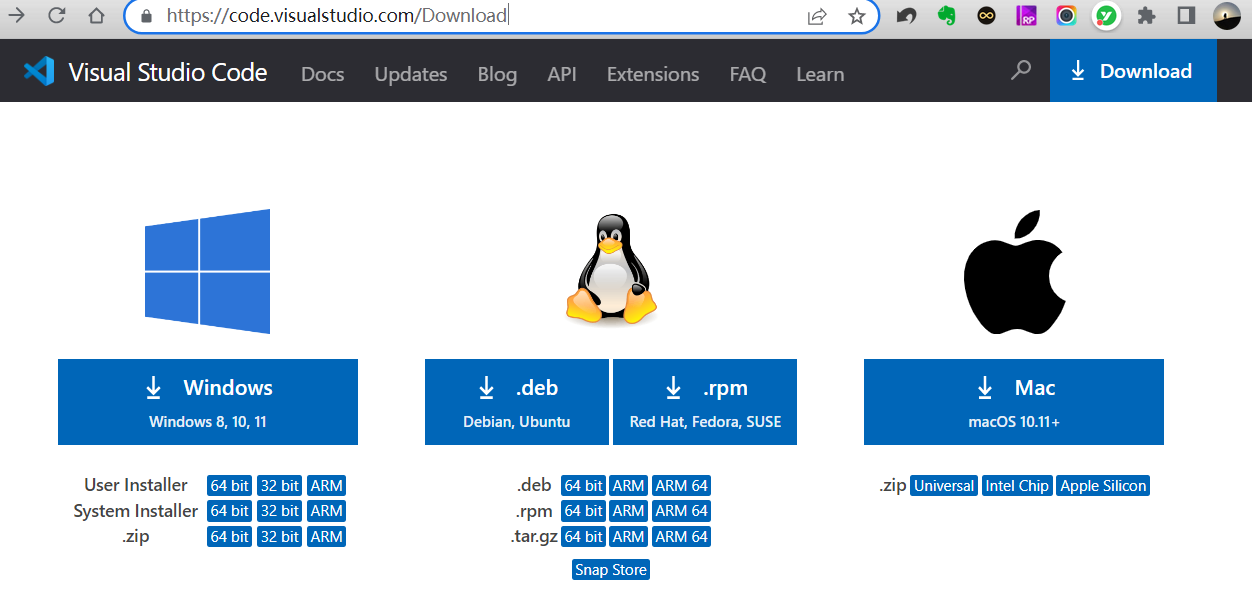

VSCode officially provides installation packages under a variety of operating systems, you can choose to download according to the operating system you use.

Download link for VSCode

image-20220822152238623

After the download is complete, double-click the installation package and follow the steps prompted to complete the installation.

Hint

If you are running in Ubuntu, download the .deb installation package, and run the following command to install it:

$ sudo dpkg -i filename .deb

Install the SSH plugin

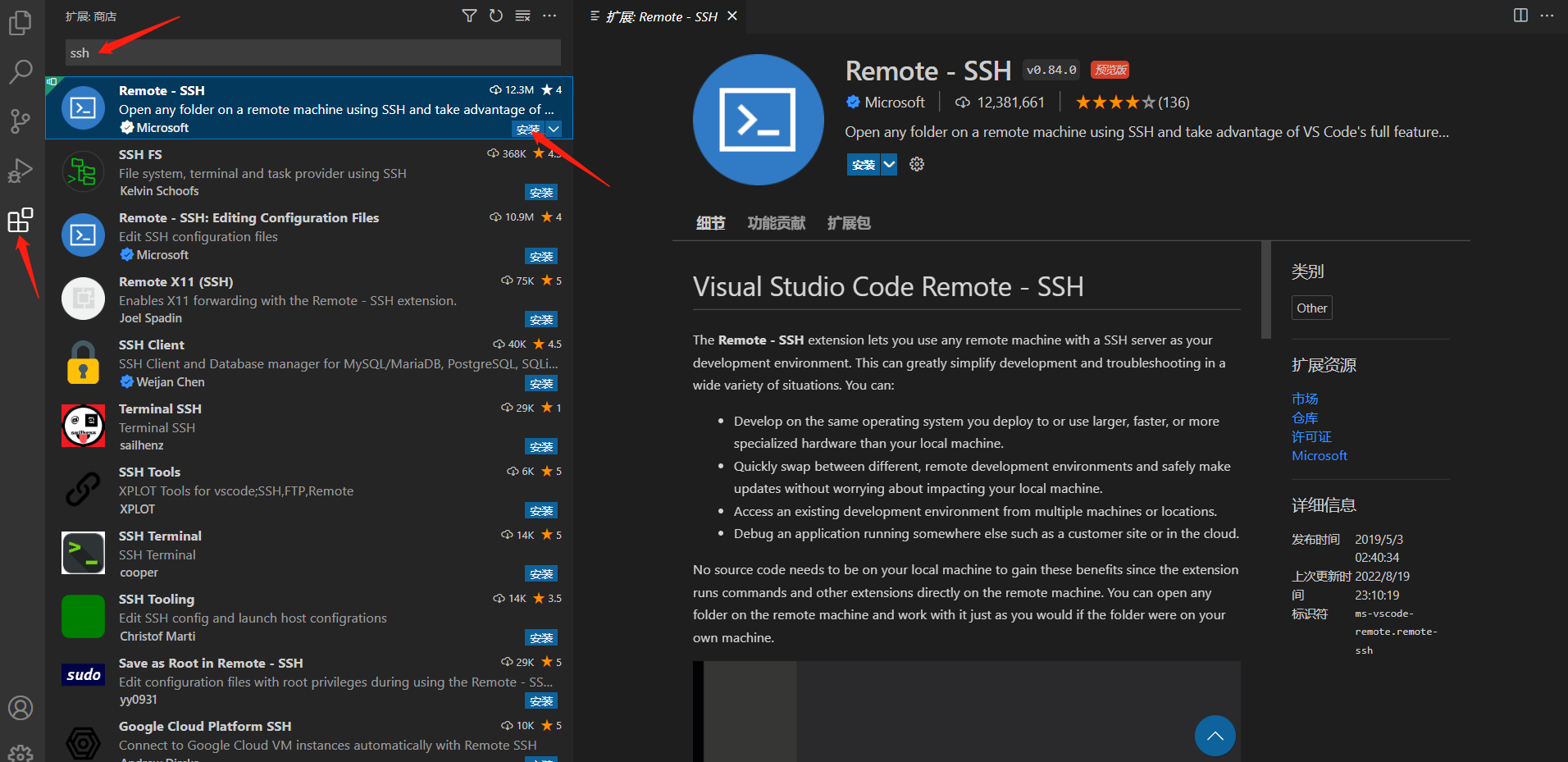

Open the installed VSCode, select the "Extensions" extension on the right, type "ssh" in the search bar to search, find the "Remote - SSH" plugin, and click Install.

image-20220822152736520

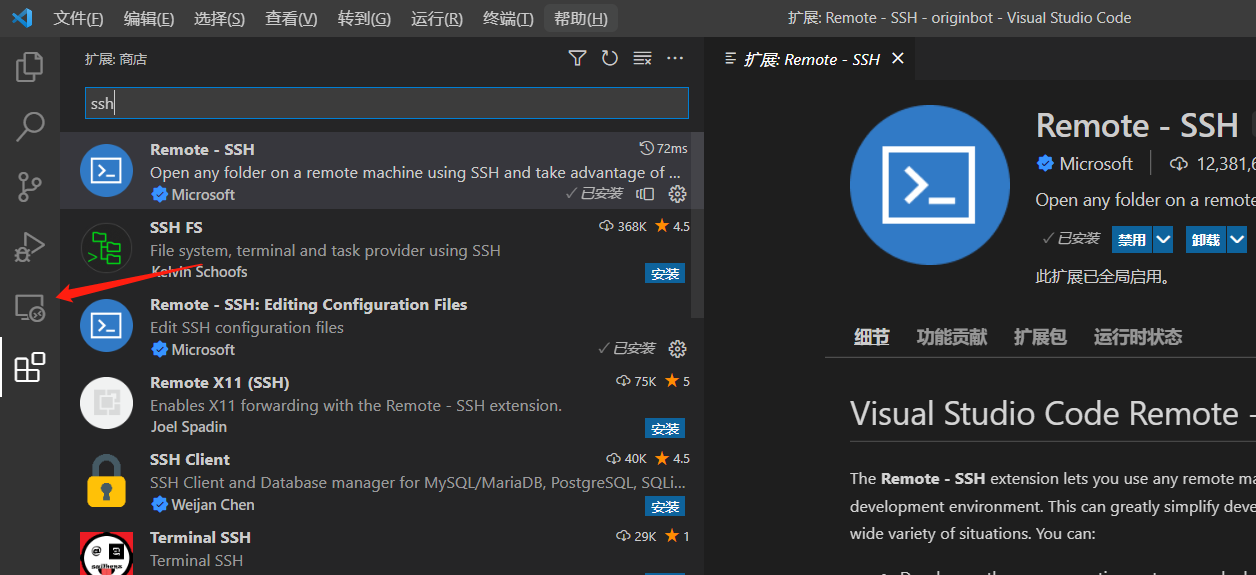

Once installed, a "Remote Explorer" will appear on the left side of VSCode.

image-20220822152836841

Configure a remote connection

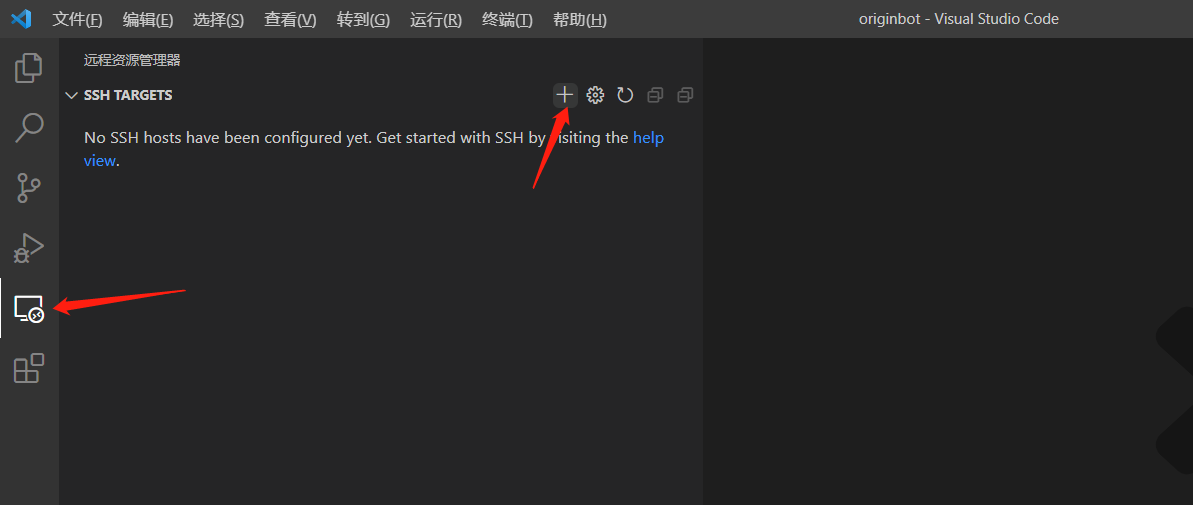

Click on the new "Remote Explorer" on the left side of VSCode and click on the "+" Add button.

image-20220822153058599

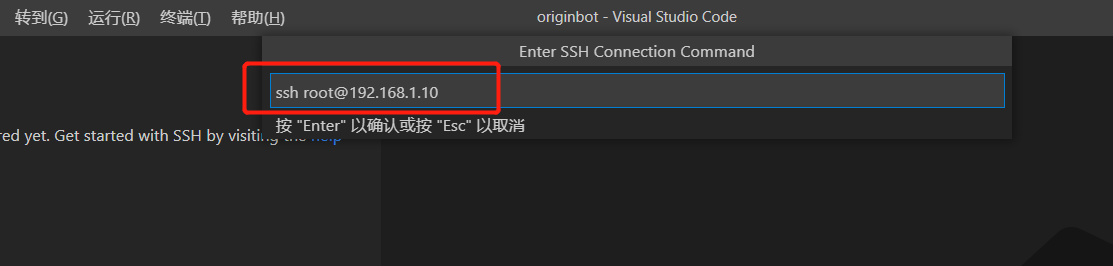

In the pop-up prompt, output the full command of ssh and press enter.

image-20220822153155393

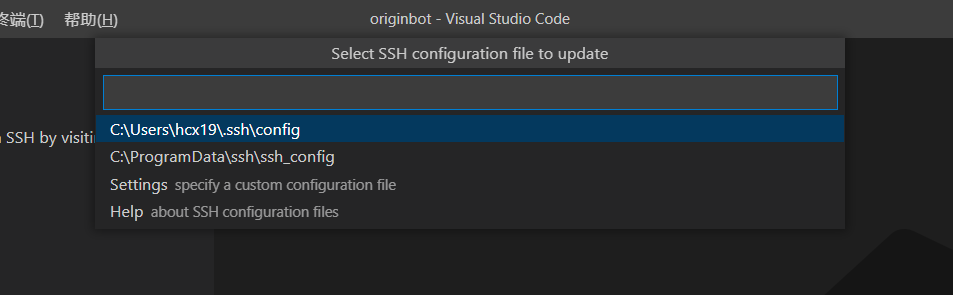

Then select the default configuration file of the first item and save the ssh command information you just entered.

image-20220822153222888

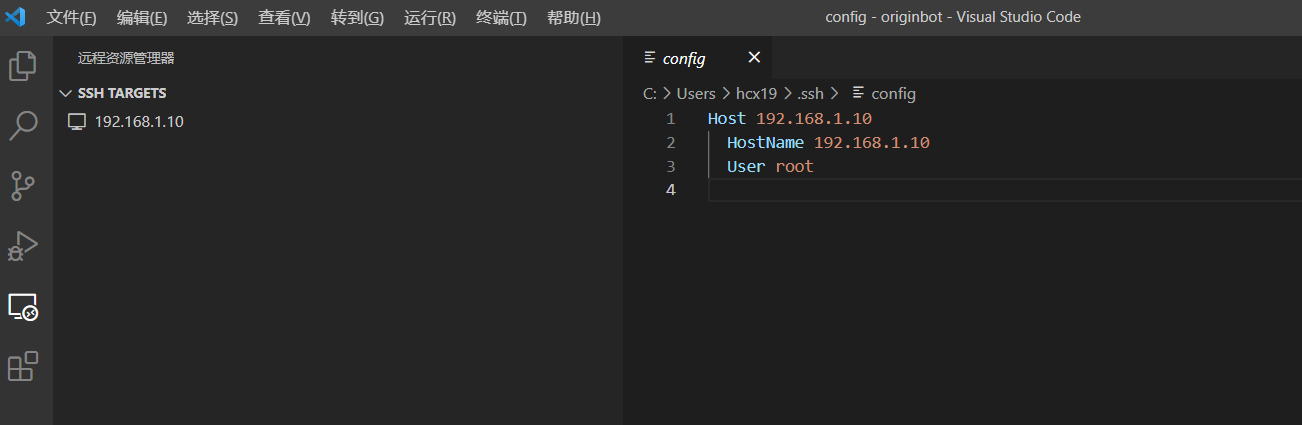

After the saving is successful, you can also follow the prompts to open the configuration file, so that you don't need to fill in the information next time you log in remotely. And in the list on the left, the IP address of the remote target has also been added.

image-20220822153333890

Connect to a remote server

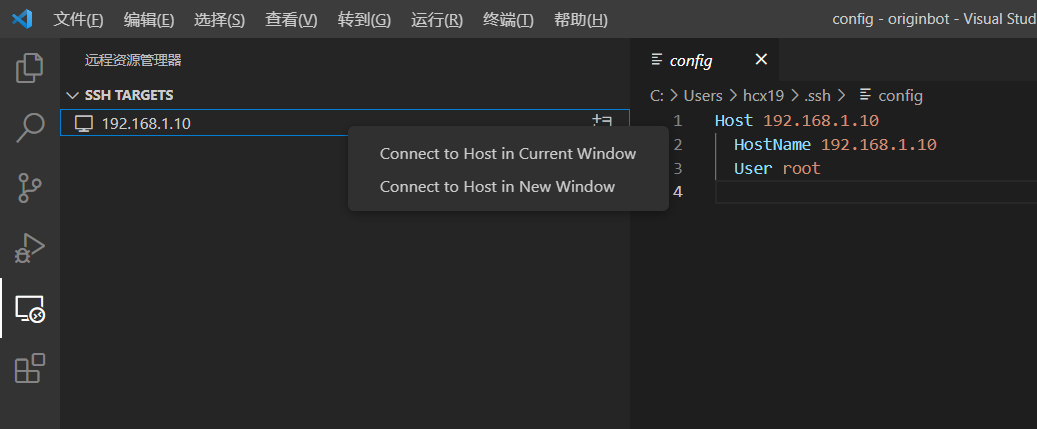

Right-click on the IP address of the remote server and select Open in Current Window.

image-20220822153531561

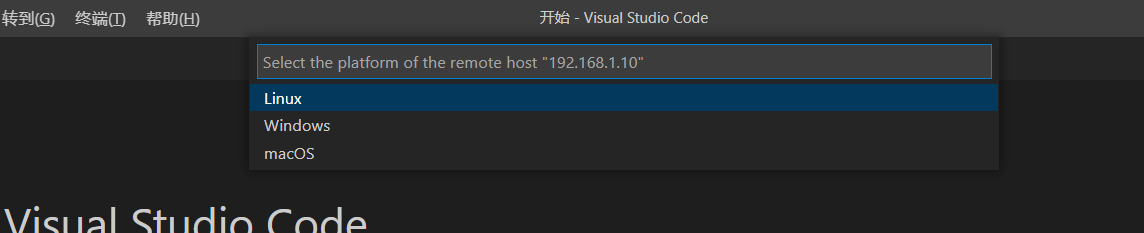

Soon a new window will open and let's select the target server system, we will select "Linux".

image-20220822153626358

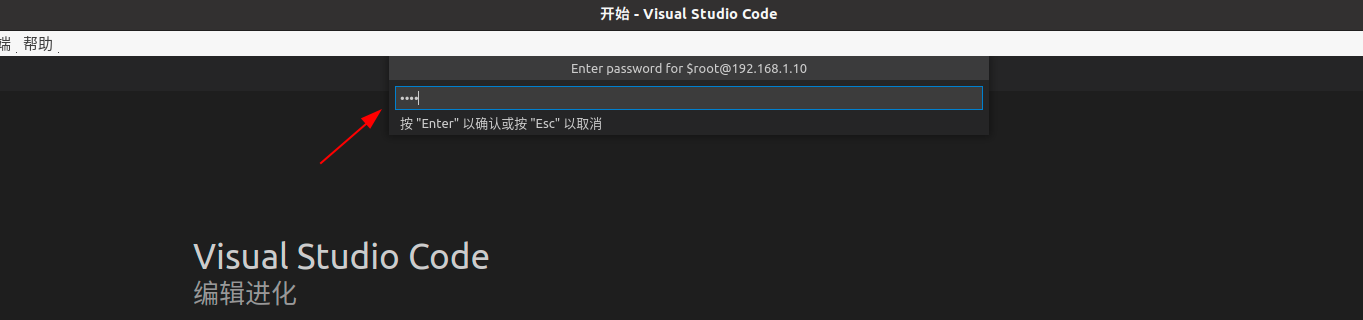

Next, enter the user password of the target server: root.

2022-08-22_15-43

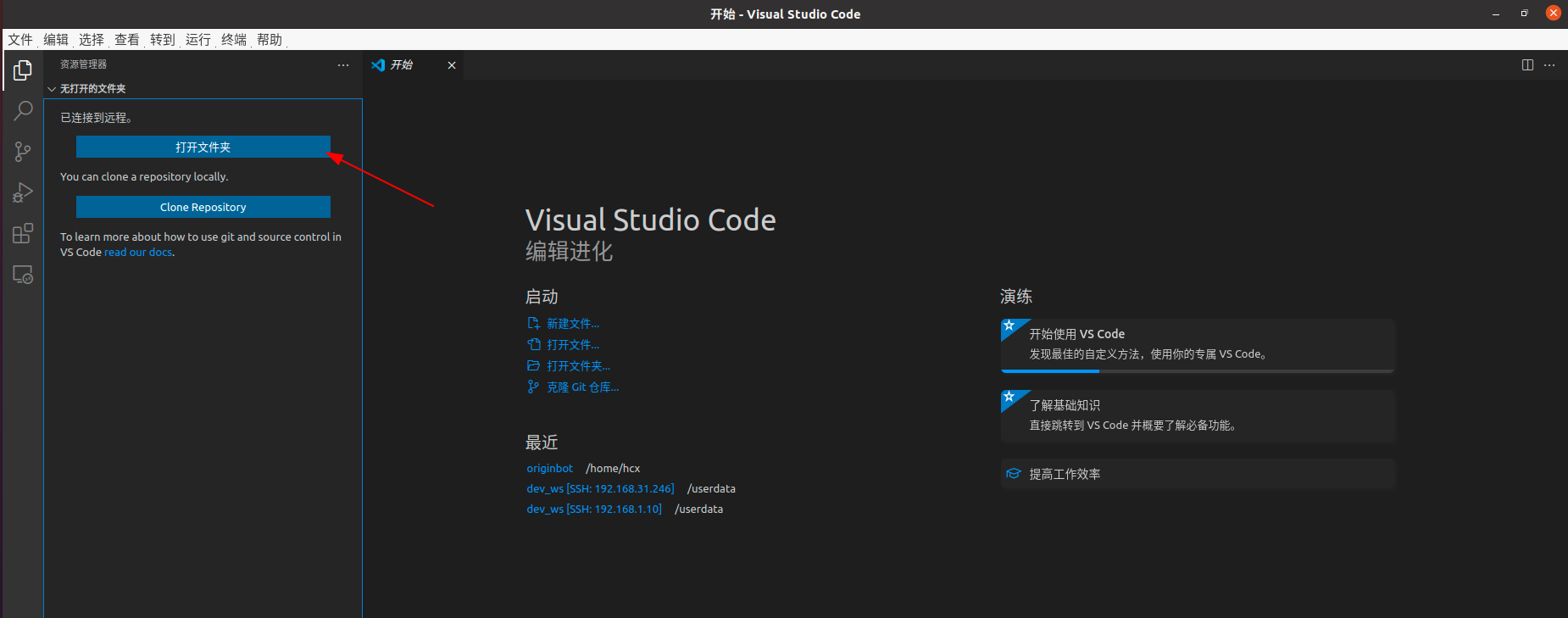

Wait a while and the login will be successful.

2022-08-22_15-44

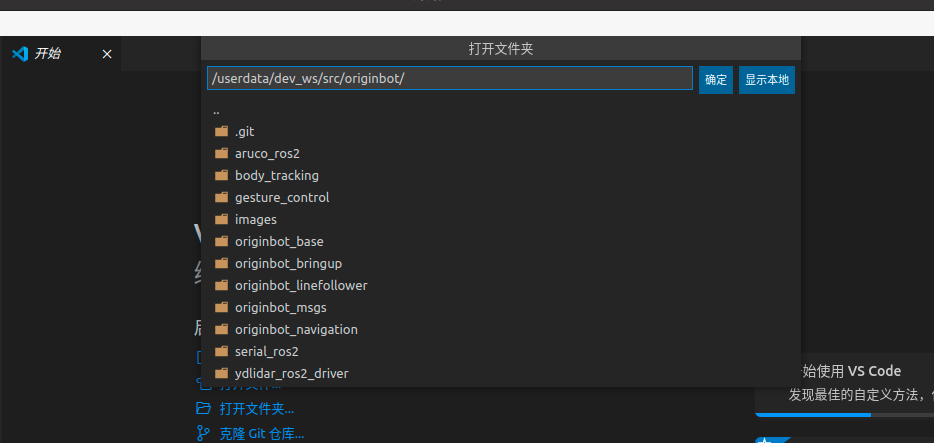

Select Open Folder.

2022-08-22_15-44_1

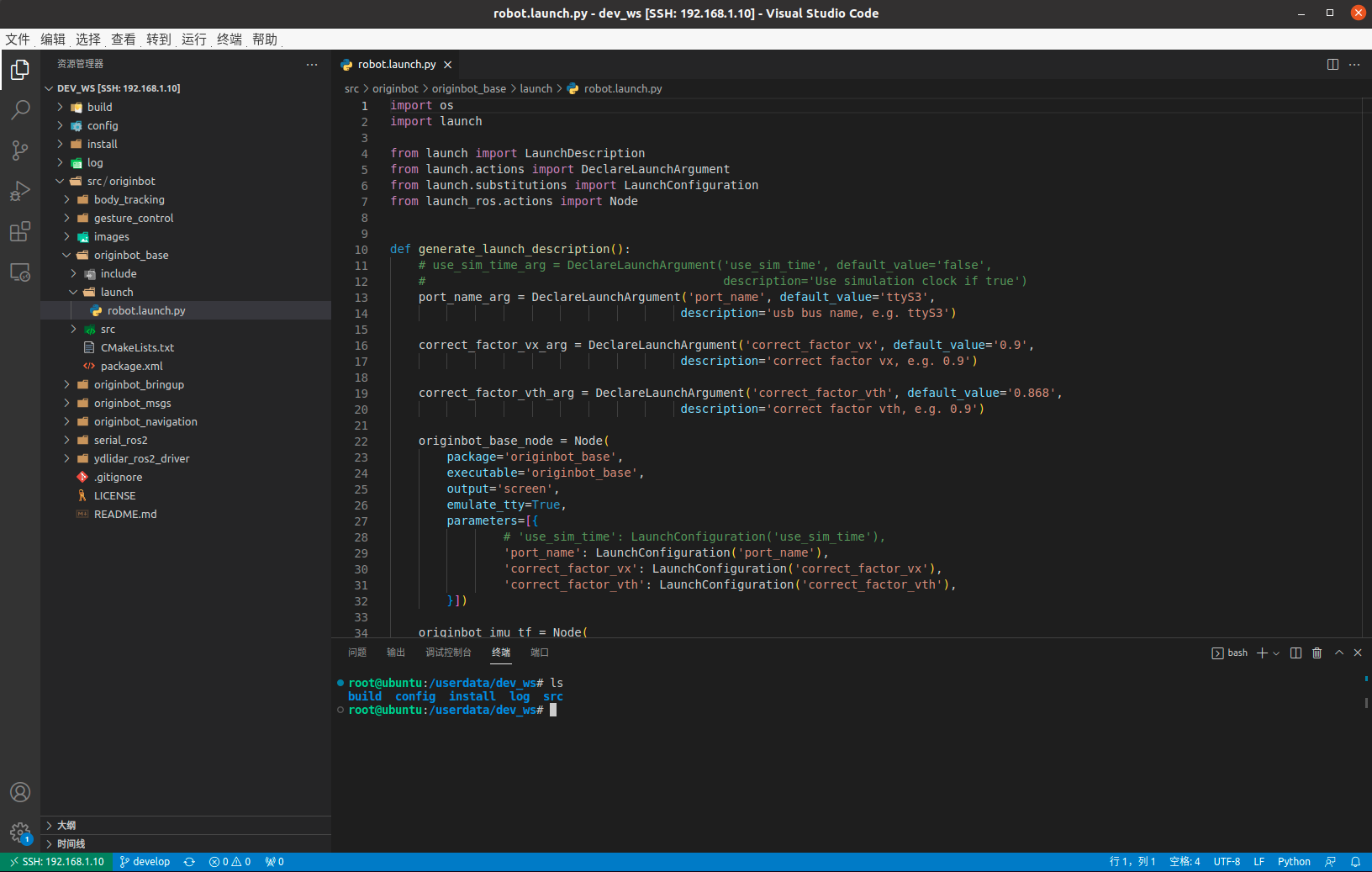

Then we select the workspace of OriginBot, and the userdata is slightly lower, which can be seen by scrolling the mouse wheel.

2022-08-13_01-34

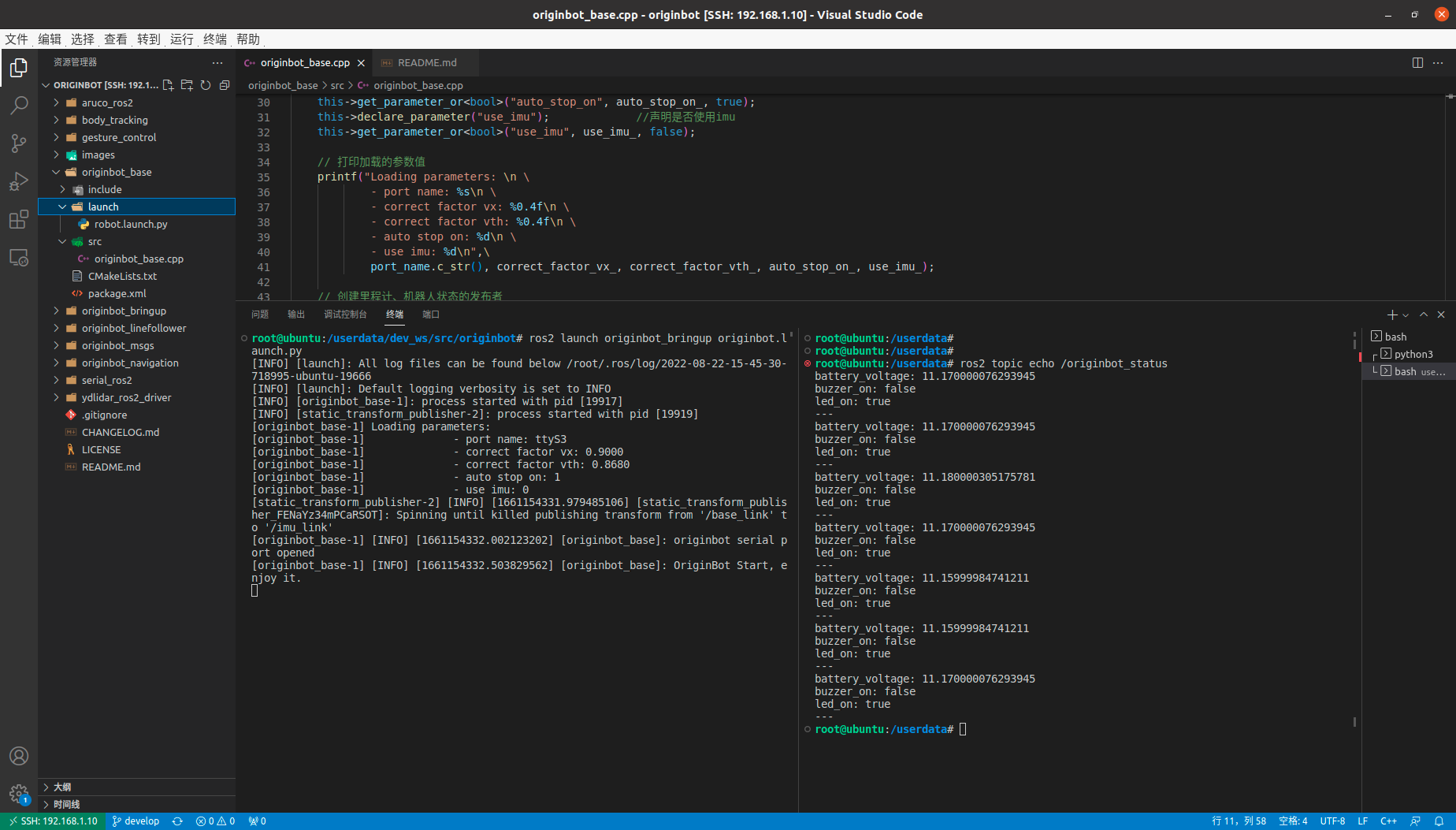

In this way, we can remotely access the code on OriginBot, and we can modify it at any time, and it will be synchronized to the bot side in real time. In addition, we can also launch multiple terminals in VSCode after a successful connection, so that we can enter various commands to run on OriginBot.

2022-08-22_15-46
