Voice Control

Hint

The operating environment and software and hardware configurations are as follows:

  • OriginBot robot（Navigation Version/Visual Version）
  • PC：Ubuntu (≥20.04) + ROS2 (≥Foxy)
  • Microphone expansion board

Function introduction

With the increasing development of electronic products, voice recognition technology has widely appeared in different scenarios, such as smart homes, voice assistants, telephone customer service, and robot tour guides. And with the continuous development of technology, the voice recognition of robots is becoming more and more accurate and reliable, which further promotes the application of robots in various fields.

The voice control function developed this time needs to be used in conjunction with the intelligent voice module of the Horizon Robotics development platform. Thanks to the BPU of 5Tops computing power on X3, it can realize low-latency algorithm inference capabilities, as well as far-field (3~5 meters) noise reduction, echo cancellation, and high-accuracy asr recognition functions realized by the voice algorithm module, and users can independently configure voice command words or directly define the behavior of the robot according to speech recognition.

Function runs

Configure the environment

After SSH connection to OriginBot, configure the intelligent voice module:

# Copy the configuration files needed to run the example from the TogetheROS installation path.
$ cp -r /opt/tros/lib/hobot_audio/config/ .

# Load the audio driver only once after the device starts.
$ bash config/audio.sh

Start the robot chassis

Enter the following commands in the terminal to start the robot chassis:

$ ros2 launch originbot_bringup originbot.launch.py

Start voice control

The following are the instructions for the password control function:

$ ros2 launch audio_control audio_control.launch.py

$ ros2 launch audio_control hobot_audio_control.launch.py

Presentation effect

前后

左右

Description of the intelligent voice module

The intelligent voice module is an audio module designed based on RDK X3, using ES7210 high-performance four-channel coding chip and ES8156 high-performance stereo audio decoding chip, which is controlled through the I2C interface and transmitted audio through the I2S interface. The standard 3.5mm headphone jack is installed on board to play music through external headphones. There is a high-quality MEMS silicon microphone in each of the left and right corners of the board for stereo recording.

Where to buy

You can check the RDK User Manual Audio Adapter Board | RDK X3 User Manual (horizon.cc) has how to use and a link to purchase

Product Features

  • Supply voltage：3.3V
  • Audio coding chip：ES7210
  • Audio decoding chip：ES8156
  • Control interface：I2C
  • Audio interface：I2S
  • ADC signal-to-noise ratio：102dB
  • DAC signal-to-noise ratio：110dB

Interface

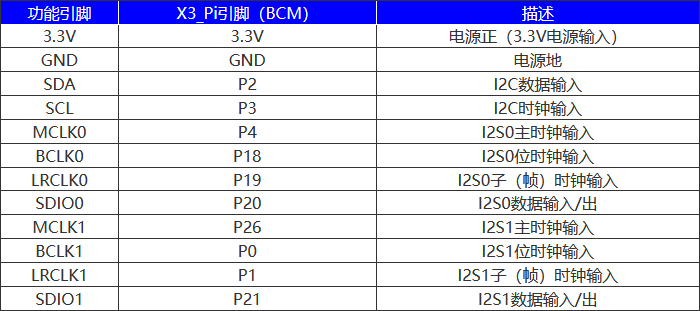

接口说明

Installation

图1

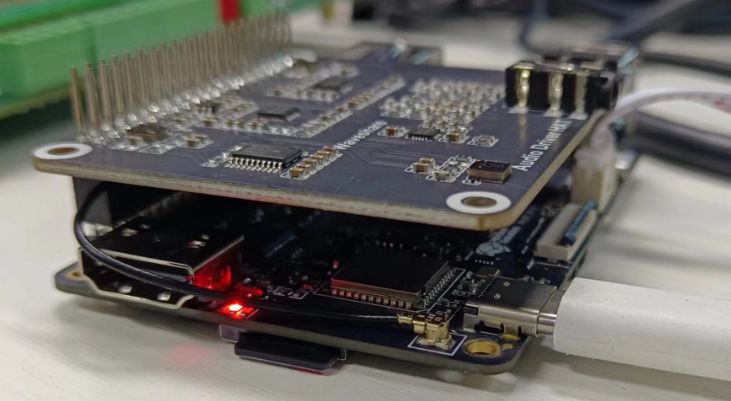

图2

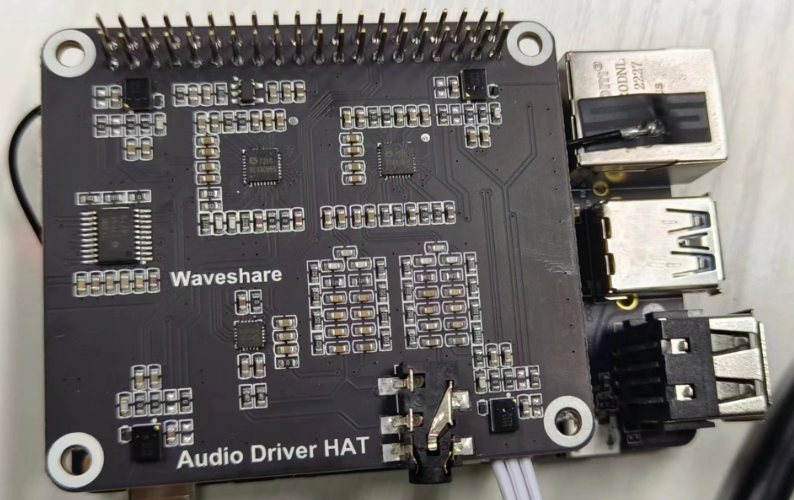

图3

Detect the hardware runtime environment method

$ i2cdetect -r -y 0

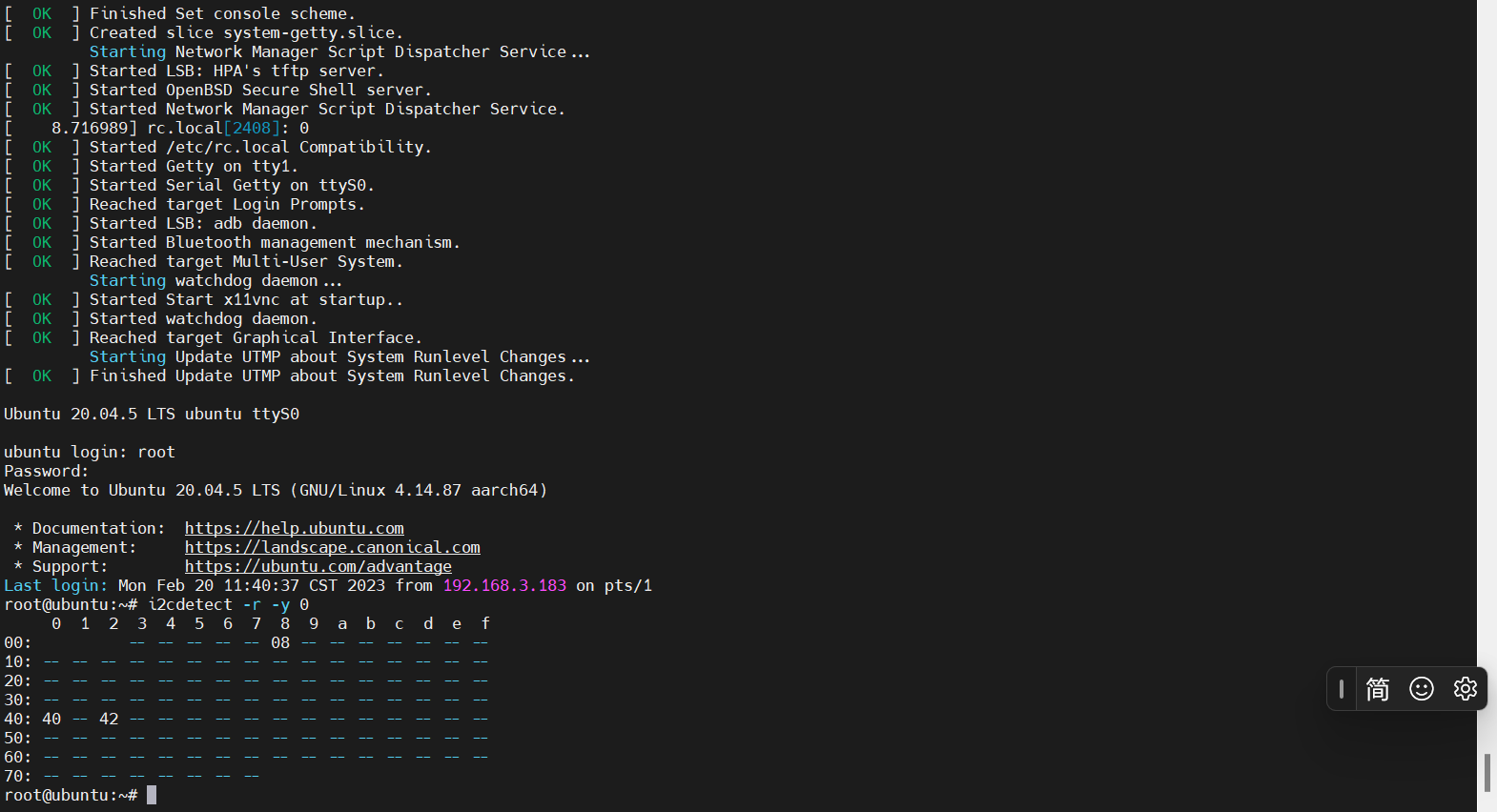

硬件环境

Among them,08 is the device address of ES8156，40and42 are the device address of ES7210.

Load the driver audio codec and the X3 audio framework driver

$ sudo modprobe es7210
$ sudo modprobe es8156
$ sudo modprobe hobot-i2s-dma
$ sudo modprobe hobot-cpudai
$ sudo modprobe hobot-snd-7210 snd_card=5

Check whether the load is successful

$ ls /dev/snd

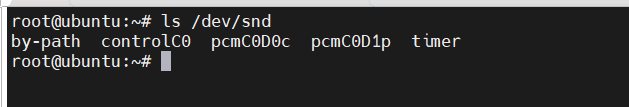

检测环境

After successfully loading, run the ls /dev/snd command to see that the audio control node, the recording and playback node of pcm, has been generated.

Recording test methods

#Capture the recording of the 4-channel microphone for 5 seconds:
$ sudo tinycap ./4chn_test.wav -D 0 -d 0 -c 4 -b 16 -r 48000 -p 512 -n 4 -t 5
#Capture the recording of the 2-channel microphone for 5 seconds:
$ sudo tinycap ./2chn_test.wav -D 0 -d 0 -c 2 -b 16 -r 48000 -p 512 -n 4 -t 5

Play

#Play 2-channel audio (4-channel recording is not supported) :
$ sudo tinyplay ./2chn_test.wav -D 0 -d 1

You can use a speaker or a 3.5mm earbud to access the jack of the U4 to listen to the effect, or you can pull the audio file from the system to the computer for playback.

Voice control is advanced

Is it possible to redefine the functionality of voice control? The answer is, it must be!

You can modify the definition and configuration of command words in the intelligent speech recognition node, and at the same time modify the control policy for custom command words in the voice control node, or directly add a voice control APP.

In the Intelligent Speech Recognition Node, the configuration files of the device wake word and command word are in the /opt/tros/lib/hobot_audio/config/hrsc/cmd_word.json file (of course, if the user copies this config folder to another path, the actual configuration path shall prevail), and the default configuration is as follows:

{
    "cmd_word": [
    "Hello",
    "Move on",
    "Back up",
    "Turn left",
    "Turn right",
    "Stop moving"
    ]
}

The first word is the wake word. So how do you do that with the commands after that?

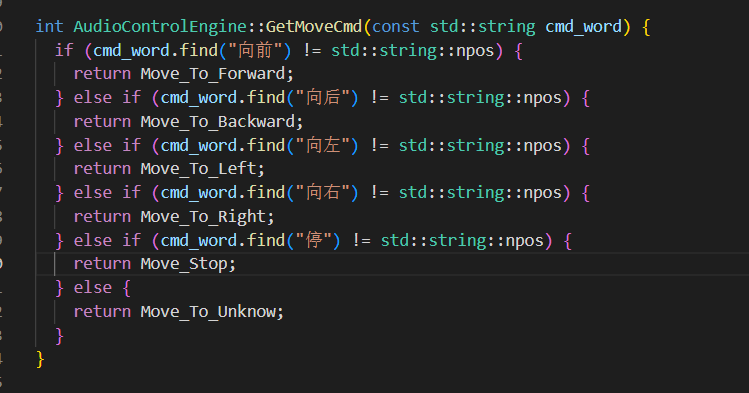

命令修改

This function is defined in audio_control\src\audio_control_engine.cpp, you only need to modify the keywords here and add the corresponding function operation to DIY by yourself.
