Kit list
Chassis and accessories
| serial number | name | quantity | Image | Specifications |
|---|---|---|---|---|

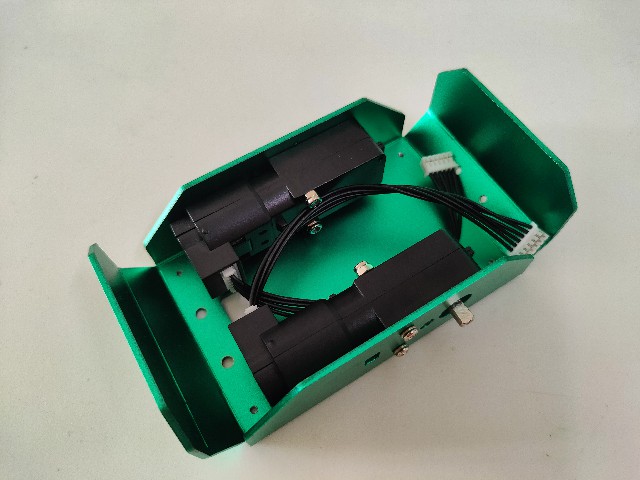

| 1 | Differential OriginBot chassis | 1 pc |  |
TT motor with encoder2： 6V，350RPM metal output shaft ,Universal wheels and brackets1 |

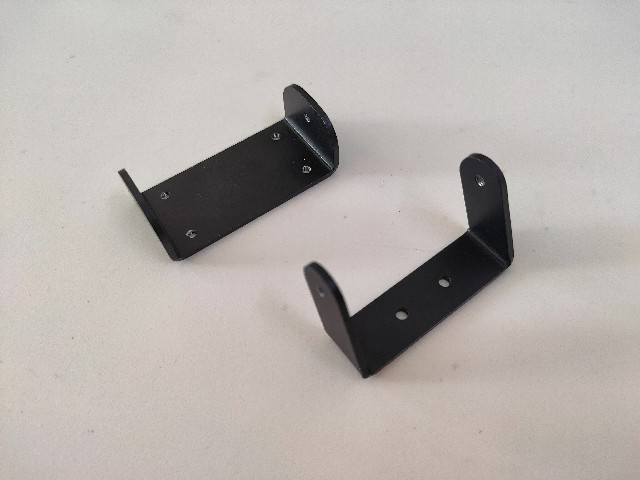

| 2 | Camera mounting bracket | 1 set |  |
|

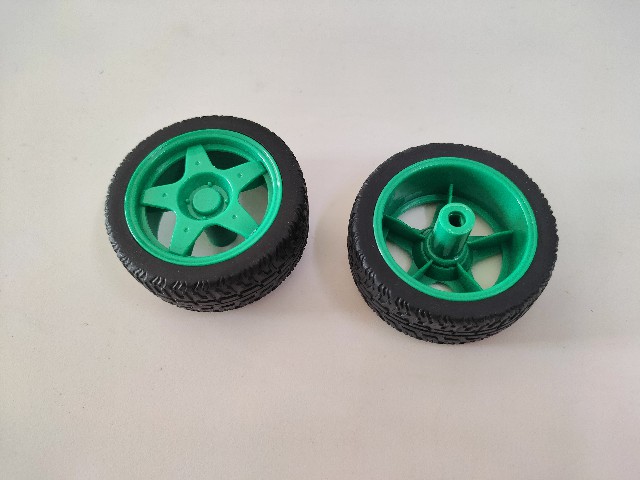

| 3 | Rubber tires | 2 pcs |  |
|

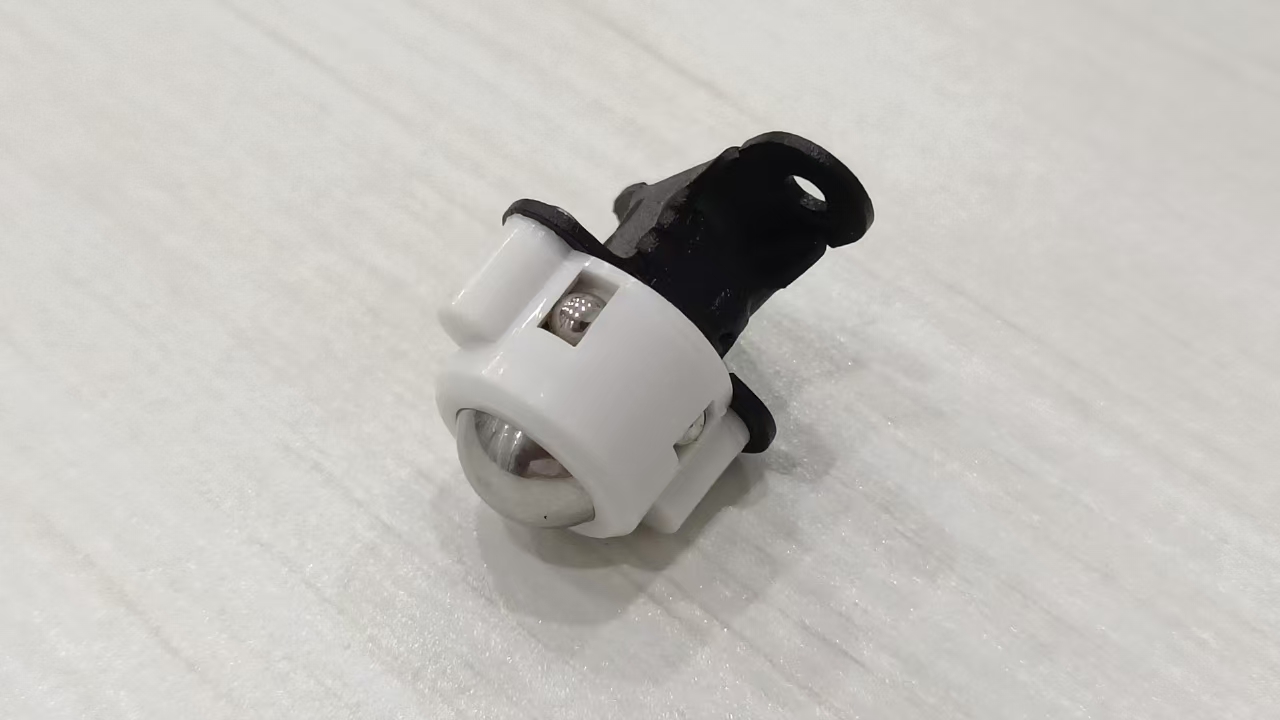

| 4 | Universal wheel | 1pc |  |
Controllers and their accessories
| serial number | name | quantity | Image | Specifications |
|---|---|---|---|---|

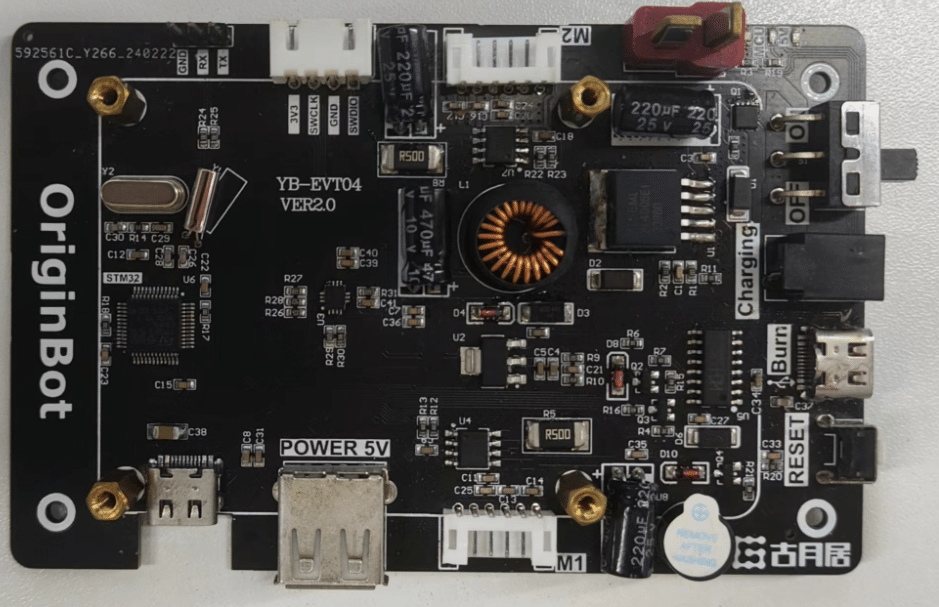

| 1 | Motion control panels | 1 piece |  |
STM32F1 |

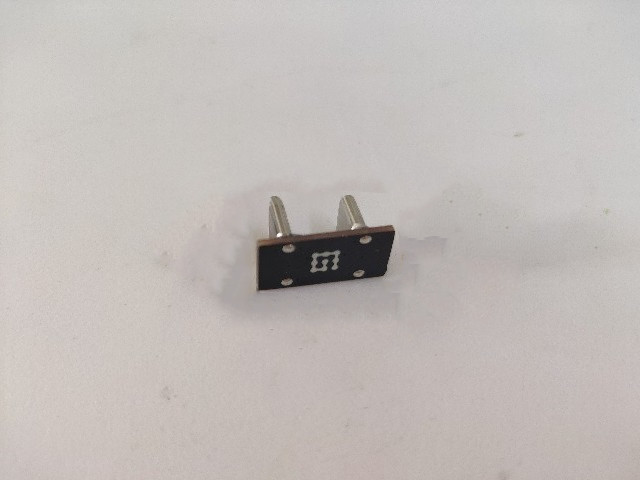

| 2 | Type-C power supply adapter board | 1 pc |  |
Type-C to Type-C 5V，4A |
Processors and their accessories
| serial number | name | quantity | Image | Specifications |
|---|---|---|---|---|

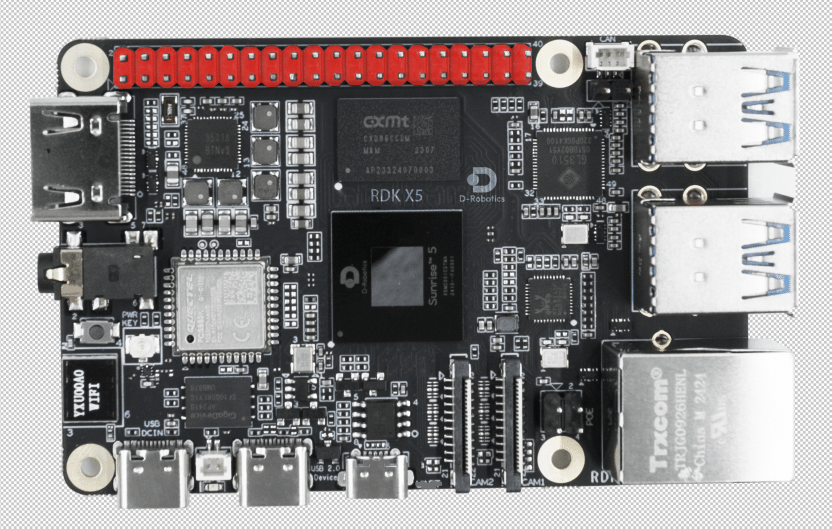

| 1 | RDK X5 | 1 set |  |
CPU：ARM Cortex-A55, 8*Core,1.5GHZ BPU： 32flops, 10Tops Memory：8GB LPDDR4 RAM |

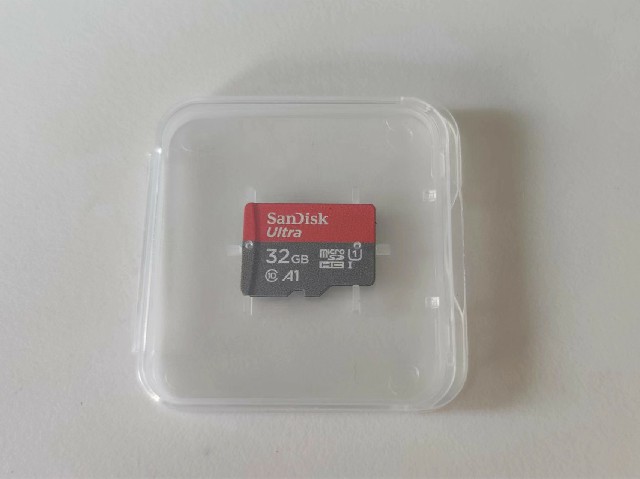

| 2 | TF card | 1 sheet |  |
SanDisk 32GB (Included in plastic/carton package, same specifications) |
Sensors and accessories
| serial number | name | quantity | Image | Specifications |
|---|---|---|---|---|

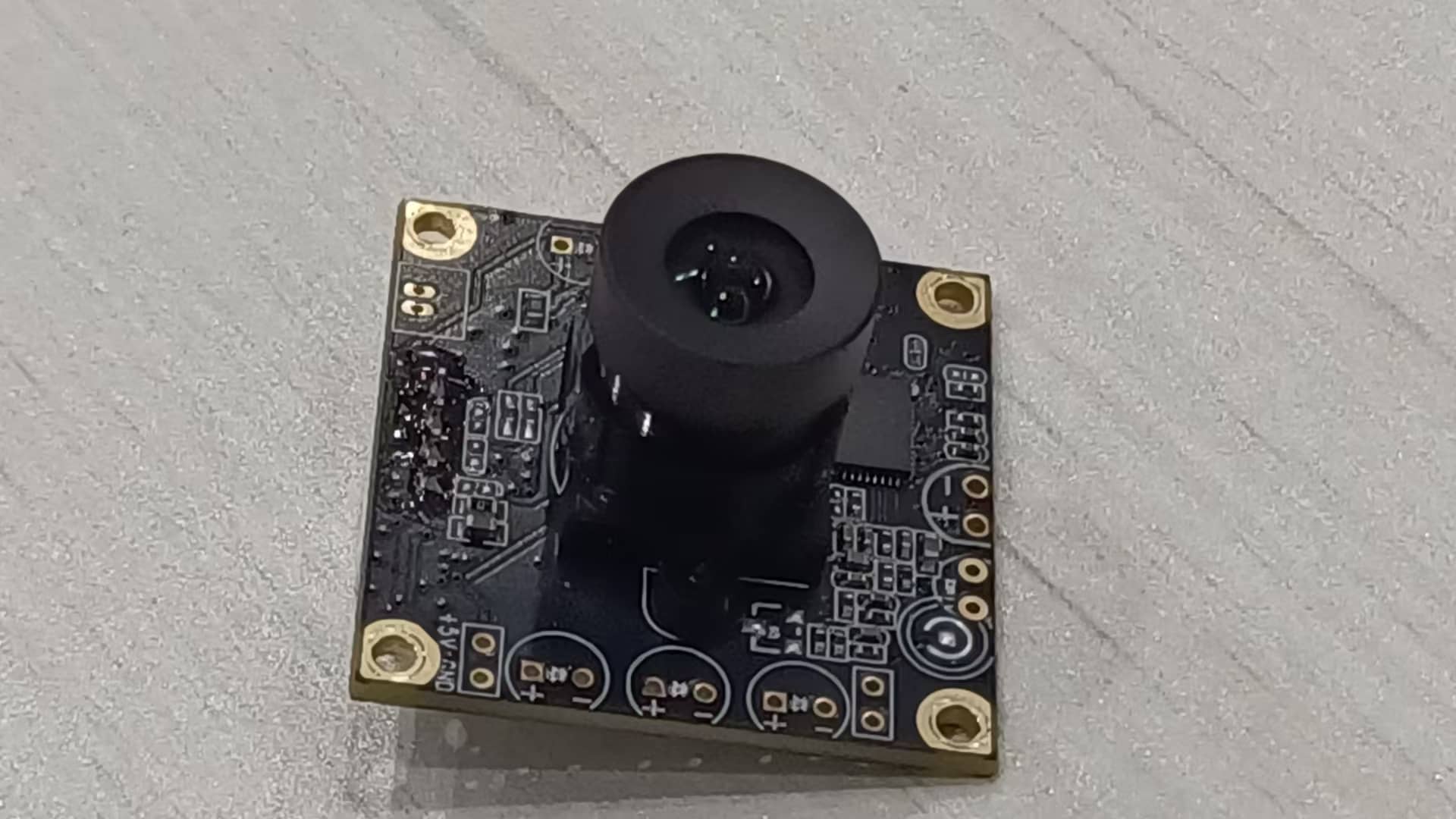

| 1 | USB Camera | 1 pc |  |
720p |

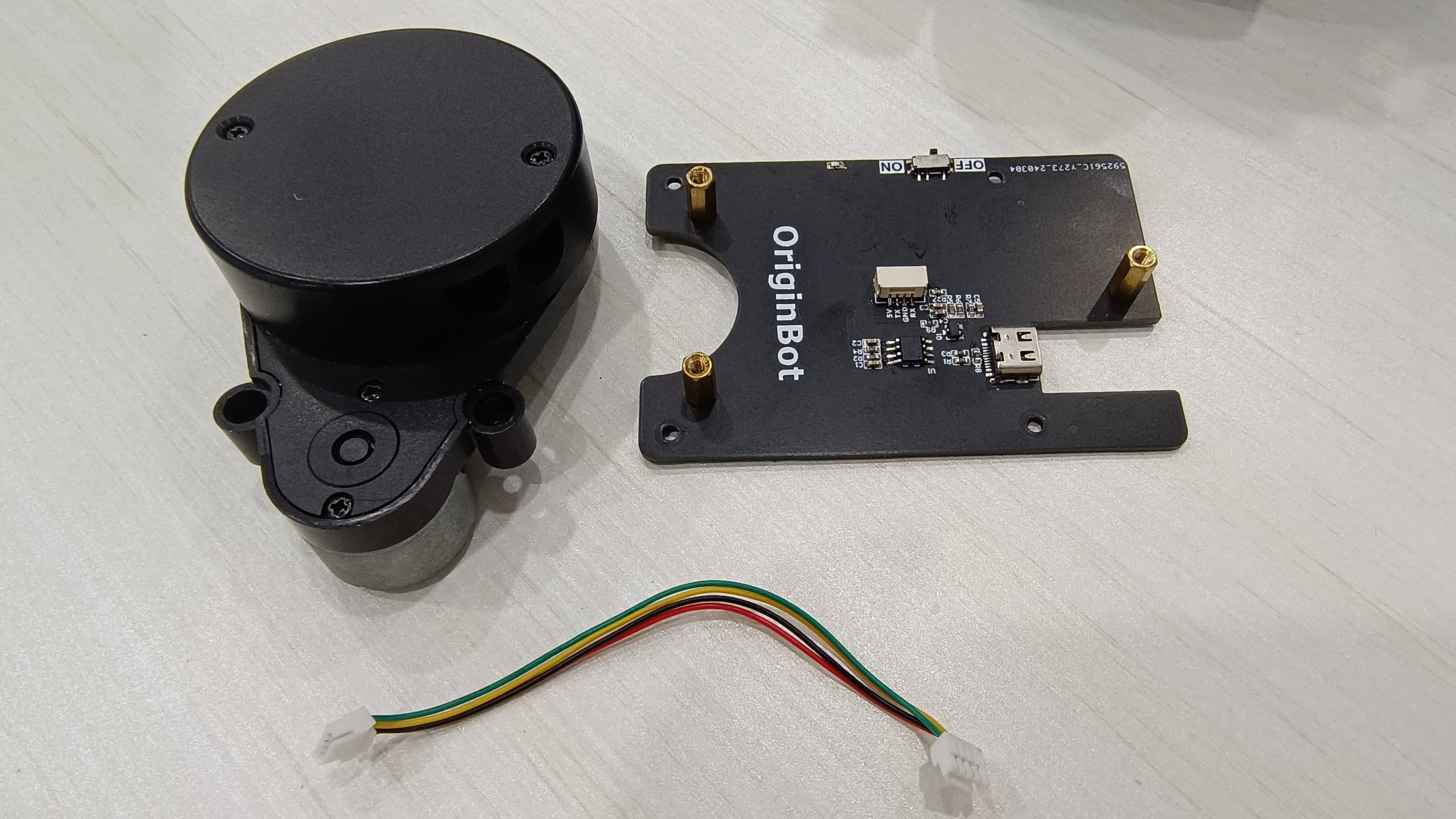

| 2 | Lidar | 1 pc |  |
VP100L Ranging frequency: 3000HZ Scanning frequency: 60Hz Scanning angle: 0~360° |
Other accessories
| serial number | name | quantity | Image | Specifications |
|---|---|---|---|---|
| 1 | License plate number sticker | 2 pcs |  |
|

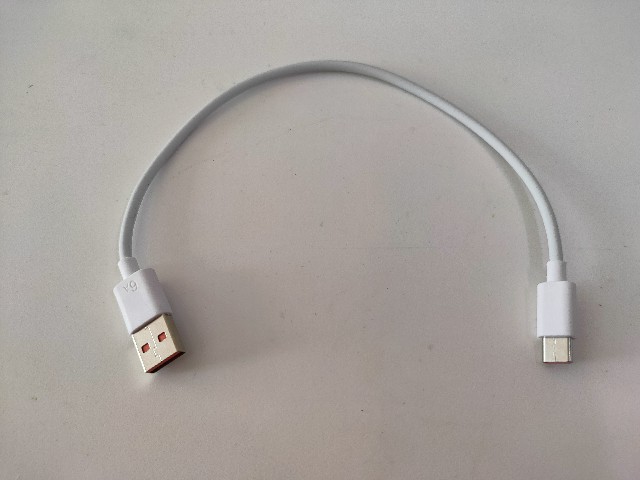

| 2 | TypeC data cable | 1 pc |  |
USB to Type-C 30cm |

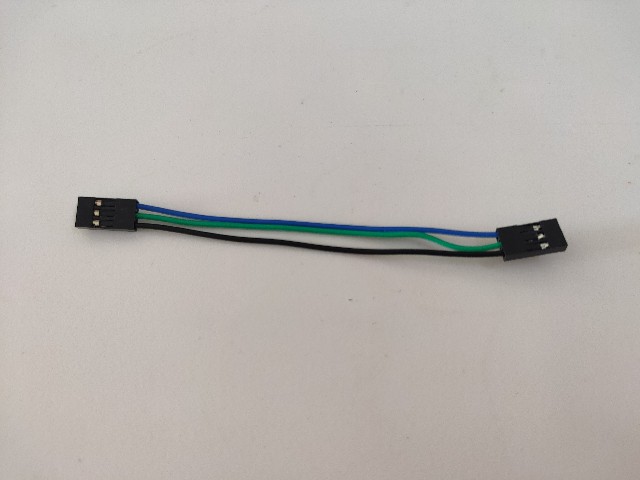

| 3 | Serial communication line | 1 pc |  |
10cm |
| 4 | Screws, copper pillars | Several |  |
|

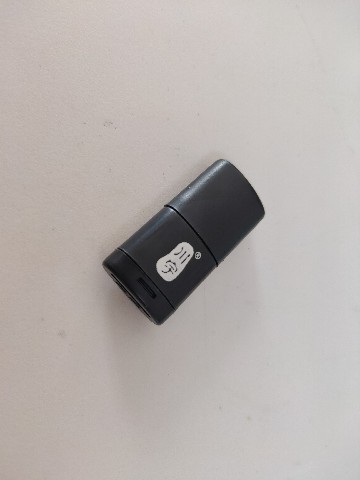

| 5 | card reader | 1 pc |  |
|

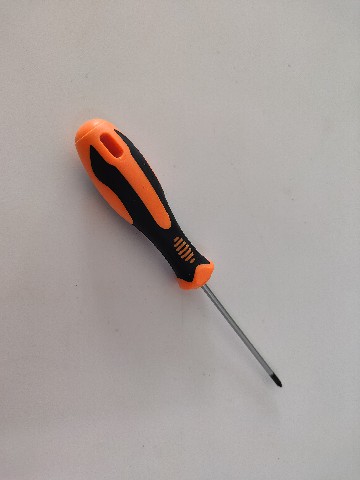

| 6 | screwdriver | 1 pc |  |
|
| 7 | wrench | 1 set |  |
|

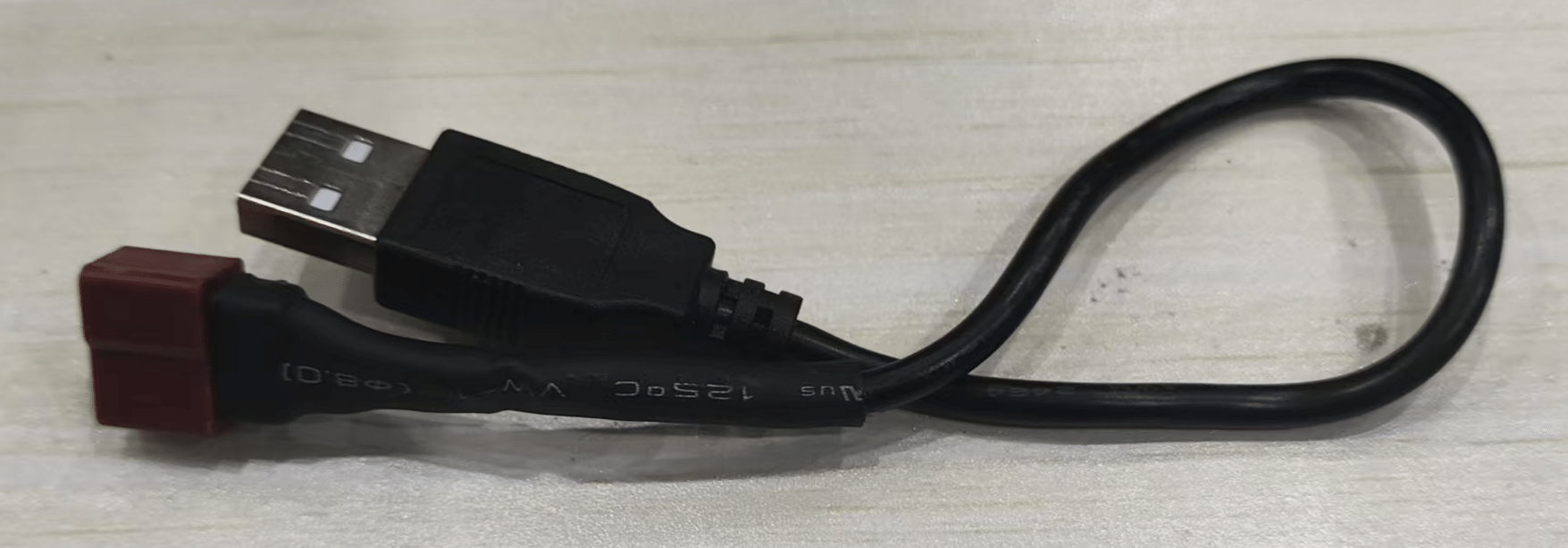

| 8 | USB to T power line | 1 pc |  |
